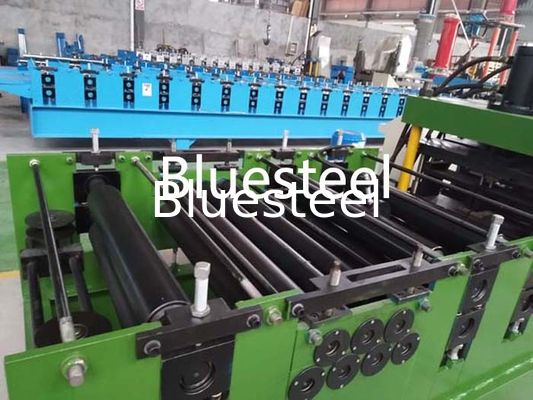

PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device

PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device
PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device
PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device

Large Image :  PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device

Product Details:
Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare partsin wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month

PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device

Description
Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System
Highlight:

sheet metal shaping machines

,

cold roll forming machine

Automatic PLC Control C Z Interchange Purlin Roll Forming Machine With Punching Device





Technical data of steel corrgated roll forming machine

Suitable material

 color steel sheet;1.5-3mm,

Working speed

about3-6m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 4Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 8000KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)





Layout drawing of machine



PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device 0





Our  Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system:   big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



producing process:



PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device 1



We can also customize the products according to customer ' s requirements

PLC Control C Z Interchange Sheet Metal Shaping Machines With Punching Device 2
