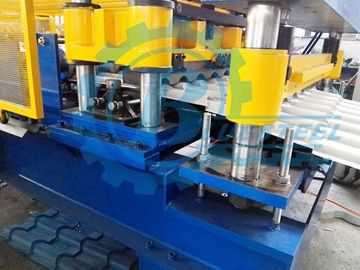

Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine

Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine

Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine
Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine

Large Image :  Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine

Product Details:
Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare parts in wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C,
Supply Ability: 50sets /month

Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine

Description
Voltage: 380V 3phase 50Hz. Raw Material: Galvanized Steel And Painted Steel,aluminium
Roller Material: No.45steel System: PLC Control Automatic System
Roller Stand: As Your Profile Drawing Dimension: 15*1.5*1.5m
High Light:

Roofing Sheet Roll Forming Machine

,

glazed tile roll forming machine

High Productivity Glazed Step Roof Tile Rolling Forming Machine With Low Consumption



Hangzhou Bluesteel Machine CO.,LTD specialized in manufacturing and exporting:



1) wall & roof forming machine

2) step tile. Ridge cap roll forming machine

3) EPS/PU sandwich panel line

4) C&Z purlin machine

5) metal decking forming machine

6) shutter door roll forming machine

7) rain spout forming machine

8) slitting line

9) cut to length line

10) guardrail roll forming machine





Our Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system: big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.









Technical data of steel corrgated roll forming machine



Suitable material

 color steel sheet;0.3-07mm,

Working speed

about2-3m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 4Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)





Layout drawing of machine



Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine 0









producing process:



We can also customize the products according to customer ' s requirements



Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine 1



Low Consumption Metal Rolling Machine High Productivity Steel Tile Forming Machine 2
