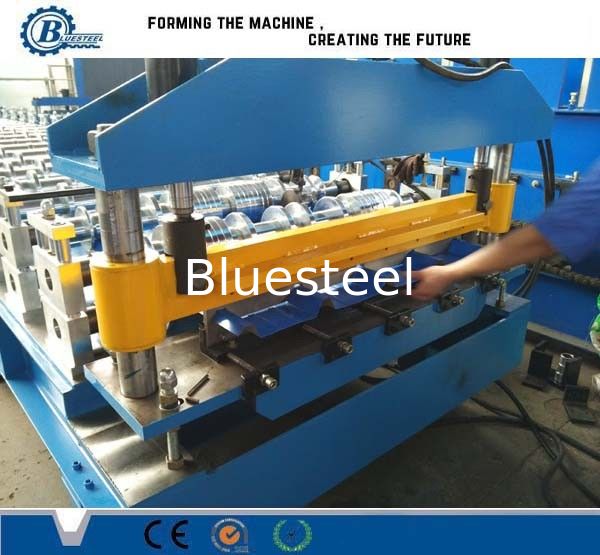

Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System

Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System
Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System

Large Image :  Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System

Product Details:
Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare partsin wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month

Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System

Description
Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System
Highlight:

metal forming machinery

,

metal roof panel machine

Steel Plate Structure Metal Roof Panel Trapezoidal Roofing Sheet Roll Forming Machine With Hydraulic Cutting System



Technical parameter



Suitable material

 color steel sheet;0.3-07mm,

Working speed

about10-25m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 4Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)





Layout drawing of machine



Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 0





Our  Roll Forming Machine’s advantages



1.  Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system:   big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



producing process:



Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 1



Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 2





Product:



Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 3



We can also customize the products according to customer ' s requirements



Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 4

Application:







Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 5Steel Plate Roof Panel Metal Forming Machinery Hydraulic Cutting System 6



2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
