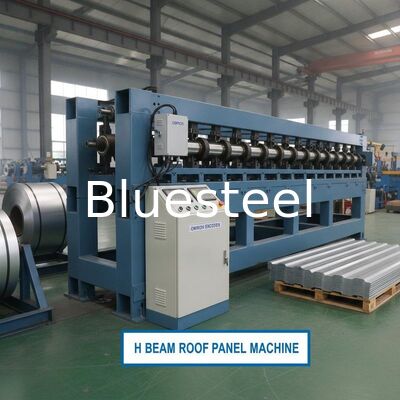

H Beam Frame Roof Panel Roll Forming Machine with Omron Encoder and 45# Steel Shaft for Roof Sheet Forming

Product Description:

The Roof Panel Roll Forming Machine is a highly efficient and robust piece of equipment designed specifically for manufacturing roof panels with precision and consistency. Known for its durability and advanced engineering, this machine is an essential tool in the construction and roofing industries, enabling the production of high-quality IBR sheets and other roof panels with ease and reliability. Its design caters to a wide range of applications, making it an indispensable asset for roofing manufacturers looking to optimize their production processes.

One of the standout features of this roof sheet panel forming machine is its substantial machine weight, which is approximately 5 tons. This heavy-duty construction ensures exceptional stability during operation, minimizing vibrations and enhancing the accuracy of the forming process. The solid build allows the machine to operate smoothly even under continuous heavy use, contributing to a longer service life and reduced maintenance requirements.

The machine is equipped with between 17 to 25 roller stations, depending on the specific configuration chosen. These roller stations play a critical role in shaping the metal sheets into the desired roof panel profiles. With a greater number of stations, the machine can achieve more complex and refined profiles, ensuring that the final product meets exact specifications. This flexibility makes the roof sheet panel forming machine ideal for producing a variety of roofing profiles, including the popular IBR sheet, which is widely used due to its strength and aesthetic appeal.

In terms of material compatibility, this roll forming machine is designed to handle metal sheets with a forming thickness ranging from 0.3mm to 0.8mm. This range covers most common roofing materials, allowing manufacturers to work with different types of steel sheets to meet diverse customer requirements. The ability to process sheets within this thickness range without compromising the quality of the formed panels highlights the machine’s versatility and engineering excellence.

The cutting mechanism of the roof panel roll forming machine is crafted from Cr12Mov steel, a material renowned for its hardness and wear resistance. This ensures that the cutter maintains sharpness over extended periods of operation, providing clean and precise cuts that reduce waste and improve the overall quality of the roof panels. The durability of the cutter material also means fewer replacements and less downtime, which is crucial for maintaining high productivity in manufacturing environments.

Additionally, the shafts used in the machine are made from 45# steel, a high-quality, medium carbon steel known for its excellent mechanical properties, including strength and toughness. These shafts support the roller stations and transmit power efficiently, ensuring smooth and reliable operation throughout the production cycle. The use of 45# steel shafts contributes significantly to the machine’s robustness and longevity, making it a dependable choice for continuous industrial use.

Overall, this roof sheet panel forming machine stands out as a comprehensive solution for producing IBR sheets and various roof panels with superior precision and durability. Its combination of a heavy-duty frame, multiple roller stations, optimal forming thickness capability, and high-quality materials for both the cutter and shafts ensures that it delivers outstanding performance in demanding manufacturing settings. Whether you are looking to enhance your roofing panel production line or seeking a reliable machine to produce consistent and high-quality roof sheets, this roof sheet panel forming machine offers the perfect blend of strength, accuracy, and efficiency.

In conclusion, investing in this roof panel roll forming machine means securing a piece of equipment that not only meets but exceeds industry standards for roof panel production. Its thoughtful design and robust components make it a valuable asset for any roofing manufacturer aiming to improve product quality, reduce operational downtime, and increase overall production capacity. With this machine, the production of IBR sheets and other roof panels becomes a streamlined and cost-effective process, paving the way for greater business success.

Features:

• Product Name: Roof Panel Roll Forming Machine
• Material of Shaft: High-quality 45# Steel
• Control System: Advanced PLC control system for precise operation
• Forming Thickness: Supports material thickness from 0.3mm to 0.8mm
• Voltage: 380V / 50HZ / 3 Phase power supply
• Encoder: Equipped with Omron encoder for accurate positioning
• Specialized for producing wave sheet forming machine profiles
• Also suitable as an IBR sheet forming machine for various roofing needs
• Efficient and reliable wave sheet forming machine for consistent quality

Technical Parameters:

Applications:

The Bluesteel Roof Panel Roll Forming Machine, model BL-3, originating from China, is an advanced and efficient solution designed to cater to a variety of roofing material production needs. This roof sheet forming machine is engineered to produce high-quality roof panels with remarkable precision and speed, making it an indispensable asset in the construction and manufacturing industries.

With a forming speed ranging from 10 to 25 meters per minute and powered by a robust 5.5KW motor, the BL-3 model ensures rapid and consistent production, significantly enhancing operational efficiency. The incorporation of a PLC control system allows for easy operation, precise control, and automation, which reduces labor costs and minimizes human error during the manufacturing process.

The Roof Panel Roll Forming Machine is highly versatile and ideal for producing various types of metal roofing sheets, including corrugated sheets, which are widely used in residential, commercial, and industrial buildings. Thanks to the durable Cr12Mov cutter material, the machine provides clean and accurate cuts, ensuring the roof panels meet stringent quality standards.

Typical application occasions for this roof sheet forming machine include large-scale roofing projects, metal sheet factories, and construction companies specializing in metal roofing solutions. It is particularly suitable for producing corrugated sheets used in warehouses, factories, agricultural buildings, and even urban housing projects. The machine’s capability to form different profiles makes it an excellent choice for manufacturers looking to diversify their product offerings.

In scenarios where speed, precision, and reliability are critical, the Bluesteel BL-3 Roof Panel Roll Forming Machine excels by delivering consistent product quality and reducing downtime. Whether you are producing standard roof panels or custom corrugated sheets, this machine adapts seamlessly to your production requirements, making it a cost-effective and efficient investment.

Overall, the Bluesteel roof sheet forming machine is designed to meet the demands of modern roofing material production, offering a combination of speed, durability, and automation that supports a wide range of roofing applications and scenarios.

Customization:

Our Bluesteel Roof Panel Roll Forming Machine, model BL-3, offers exceptional customization services tailored to meet your specific needs. Originating from CHINA, this roof sheet panel forming machine is designed for efficiency and durability, with a forming speed ranging from 10 to 25 meters per minute, ensuring high productivity for your projects.

The machine features rollers made from high-quality 45# steel, providing excellent wear resistance and longevity. Powered by a 5.5KW motor and operating on a 380V/50HZ/3Phase voltage, it guarantees stable and consistent performance. The shaft is also crafted from 45# steel, enhancing the machine's overall strength and reliability.

Whether you require a roof sheet panel forming machine or a wave sheet forming machine, Bluesteel’s BL-3 model can be customized to produce precise profiles that suit your architectural and construction requirements. Our customization services include adjustments in forming speed, roller design, and material specifications to ensure optimal performance for your specific application.

Choose Bluesteel for a robust wave sheet forming machine that combines advanced engineering with customizable features, delivering superior quality and efficiency for your roofing production needs.
