Cutting Length: | 6m | Material: | Steel |
---|---|---|---|
Dimension: | 6000*1200*1500mm | Voltage: | 380V/50Hz/3Phase |
Thickness Of Raw Material: | 1.5-3.0mm | Forming Speed: | 15-20m/min |
Productivity: | 15-20m/min | Cutting Tolerance: | ±2mm |
Highlight: | 6m Purlin Roll Forming Machine,20 Stations Purlin Roll Forming Machine |
The Purlin Roll Forming Machine is a high-precision engineering marvel designed for the efficient and rapid production of C-shaped purlins. These purlins are indispensable components used in modern building structures, providing robust support to walls and roofs. The machine's core functionality lies in its ability to transform flat sheets of metal into fully formed C purlins through a series of systematic bends and folds, executed with impeccable accuracy and speed.
The Purlin Roll Forming Machine boasts an exceptional cutting tolerance of ±2mm, a testament to its precision engineering. This level of accuracy ensures that each purlin produced is consistent in quality and dimensions, which is critical for the integrity of the structures they are used in. With a substantial dimension of 6000*1200*1500mm, the machine is robust and capable of handling large-scale production demands without compromising on performance or reliability.
Equipped to operate at a voltage of 380V/50Hz/3Phase, the Purlin Roll Forming Machine is designed for seamless integration into various industrial settings. This universal power compatibility, coupled with its impressive productivity rate of 15-20m/min, positions the machine as a highly productive asset, capable of delivering a continuous output of C purlins to meet the demands of even the most time-sensitive projects.
At the heart of the machine's operational excellence is its sophisticated Control System – a Programmable Logic Controller (PLC). The PLC is the machine's brain, allowing for intuitive and user-friendly operation. It enables the user to program the machine for different sizes and profiles of C purlins, ensuring versatility and adaptability to various project requirements. The PLC also plays a crucial role in maintaining the consistency of the purlins' dimensions, monitoring the production process, and making real-time adjustments to guarantee the highest standards of product quality.
The C purlin forming machine component of the system is engineered for durability and longevity. The forming rollers and cutting dies are made from high-grade materials that can withstand the rigors of metal forming operations, ensuring that the machine's performance is not only efficient but also consistently reliable over an extended period. The robust construction of the C purlin forming machine aspect of the equipment ensures minimal downtime and maintenance, thus maximizing productivity and return on investment.
For manufacturers and construction companies looking for a dependable C purlin forming machine, this Purlin Roll Forming Machine offers a perfect solution. Its impeccable precision, high productivity, and advanced control system make it an indispensable tool for producing high-quality C purlins. It streamlines the production process, reduces labor costs, and offers a degree of flexibility that is unmatched in the market. The machine's design and capabilities reflect a deep understanding of the needs of modern construction, where efficiency, precision, and reliability are paramount.
In summary, the Purlin Roll Forming Machine is not just an equipment purchase; it's an investment in quality, efficiency, and technological advancement. Its cutting-edge features, including a high degree of accuracy, large dimension capacity, optimal voltage requirements, superb productivity, and a state-of-the-art PLC control system, make it a standout in the field of C purlin manufacturing. For businesses aiming to elevate their production capabilities and ensure the integrity of their construction projects, this machine represents a pivotal asset.
Parameter | Specification |
---|---|
Forming Speed | 15-20m/min |
Cutting Tolerance | ±2mm |
Voltage | 380V/50Hz/3Phase |
Productivity | 15-20m/min |
Thickness of Raw Material | 1.5-3.0mm |
Material | Steel |
Weight | 11T |
Control System | PLC |
Cutting Length | 6m |
Roller Material | 45# Steel |

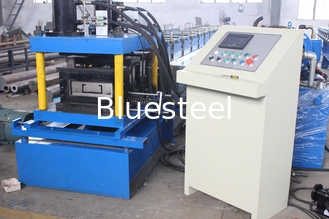

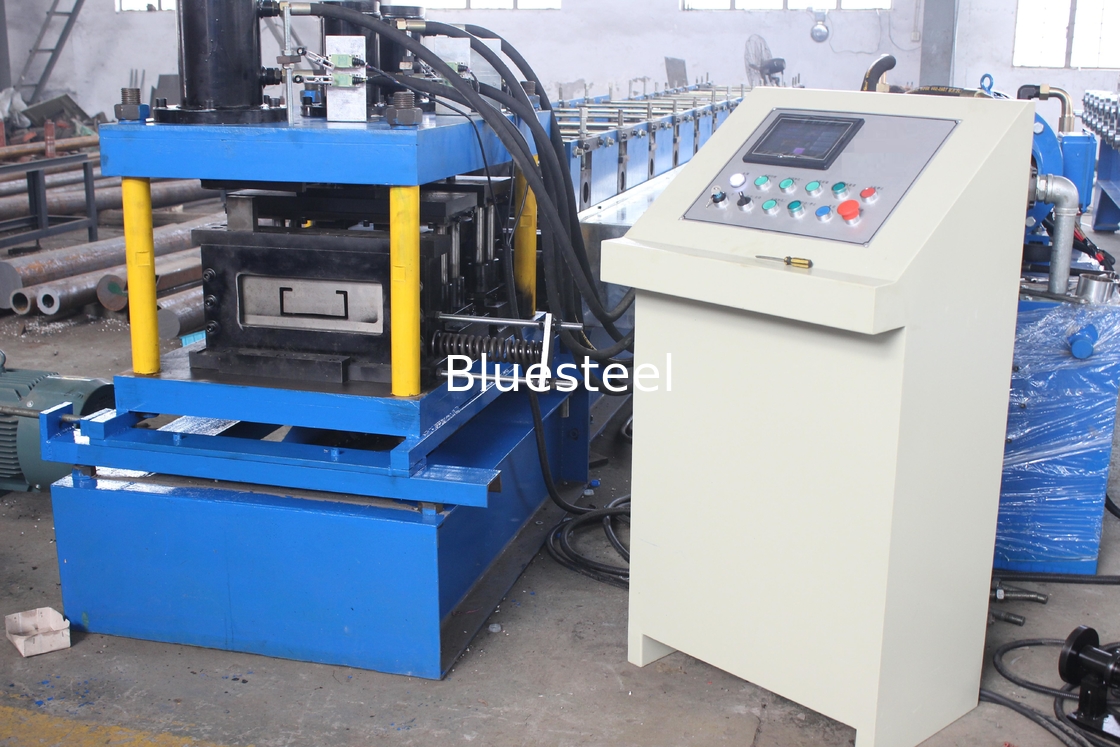

The Bluesteel Model BL-4 Purlin Roll Forming Machine, a state-of-the-art solution crafted in the heart of China, is a prime example of innovation in the field of metal fabrication. Specialized in producing high-quality C-shaped purlins, this machine is an essential tool in the construction industry. The C purlin forming machine is engineered to cater to a diverse range of applications and scenarios, ensuring that each purlin produced meets the strictest quality standards.
With its robust chain drive system, the Bluesteel BL-4 offers unmatched precision and efficiency. The drive type specifically caters to continuous and high-volume production needs, making it an indispensable asset for large-scale construction projects. The machine's roller material, which is crafted from 45# steel, guarantees durability and longevity, even under the most demanding conditions, ensuring a consistent output of purlins without significant wear and tear.
The versatility of the Bluesteel Purlin forming machine is further exemplified by its ability to handle steel materials of varying widths, ranging from 120mm to 500mm. This flexibility allows for the production of purlins suitable for different structural requirements, from small residential buildings to expansive commercial complexes. The precision of the Bluesteel BL-4 is evident in its cutting tolerance of ±2mm, which ensures that each purlin is cut to exact specifications for seamless integration into various construction projects.
Construction sites for warehouses, factories, and retail stores are common applications for the high-quality purlins produced by the Bluesteel C purlin forming machine. The machine's efficiency and reliability make it a perfect match for projects that require rapid and large-scale production of purlins. Additionally, the machine is an asset in the production of purlins for roofing and wall support in prefabricated buildings, where standardized, and high-strength structural components are essential.
Moreover, the Bluesteel Model BL-4 is not only confined to the construction sector. It can also be employed in manufacturing storage systems, such as shelving and racking, where the uniformity and precision of the purlins contribute to the overall stability and quality of the storage solutions. The machine's capability to deliver consistent results ensures that it is a go-to choice for manufacturers requiring reliable and efficient purlin production for their systems.
In conclusion, the Bluesteel BL-4 Purlin Roll Forming Machine is a powerful and adaptable tool designed to meet the diverse needs of modern construction and manufacturing. Its applications span from structural supports in buildings to components in storage systems, showcasing the machine's flexibility and importance in various industries. Manufactured in China, with high-grade 45# steel rollers and a robust chain drive, the Bluesteel BL-4 stands as a testament to quality and excellence in the field of purlin formation.
Brand Name: Bluesteel
Model Number: BL-4
Place of Origin: China
Power: 7.5KW
Material: Steel
Forming Speed: 15-20m/min
Roller Material: 45# Steel
Thickness of Raw Material: 1.5-3.0mm
Bluesteel's Model BL-4 C purlin forming machine is engineered with precision to deliver high-speed performance in creating C and Z purlins. This innovative machine is the perfect solution for manufacturing both Z purling and C purling , providing versatility and efficiency for your roll forming needs. Crafted in China with a powerful 7.5KW motor and robust 45# steel rollers, the BL-4 is capable of forming steel at a speed of 15-20 meters per minute with a material thickness range of 1.5-3.0mm.
The Purlin Roll Forming Machine is designed with the latest technology to ensure efficient and reliable performance. Our product technical support and services for this machine include:
Installation Assistance: We provide comprehensive guidance and support for the installation of your Purlin Roll Forming Machine to ensure it is set up correctly and ready for operation.
Operation Training: To help you get the best out of your machine, we offer detailed training on operation procedures, ensuring your team is well-equipped to handle the machine effectively.
Maintenance Support: Regular maintenance is critical for the longevity of your machine. We offer maintenance tips and schedules to keep your machine running smoothly.
Troubleshooting: In the event of operational issues, our technical support team is available to assist you with troubleshooting. We guide you through step-by-step solutions to get your machine back up and running.
Parts and Service: We provide a full range of replacement parts and servicing options for your Purlin Roll Forming Machine, ensuring minimal downtime and continuous operation.
Upgrades and Updates: Stay up-to-date with the latest features and improvements with our upgrade and update services. We continuously work on enhancing our machines and provide information on the latest upgrades available.
Technical Documentation: Access a comprehensive set of technical documents that include user manuals, part diagrams, and specification sheets to help you understand and manage your machine more effectively.
Our dedicated technical support team is committed to providing you with the highest level of service and support to ensure that your Purlin Roll Forming Machine operates at peak performance.
The Purlin Roll Forming Machine is meticulously packaged to ensure its safety and integrity during shipping. The main forming machine is securely wrapped in plastic film to protect against dust and moisture. All electronic components are encased in protective padding and placed in sturdy wooden boxes, safeguarding them from impact and vibrations during transit. The entire package is then securely strapped to a heavy-duty steel frame, which is designed to fit perfectly within a standard shipping container, minimizing any movement that could cause damage. Clear labeling is affixed to the outside of the packaging, providing handling instructions and identifying the contents for efficient transportation and customs clearance.
Upon dispatch, the Purlin Roll Forming Machine is loaded onto a suitable vehicle using a forklift with adequate capacity. The shipping process is carefully monitored, and the route is planned to minimize transit time and avoid potential hazards. A tracking number is provided to the customer, allowing them to monitor the shipment's progress until it reaches its destination. Upon arrival, the machine is to be carefully inspected for any signs of damage during shipping before installation and operation. Any discrepancies or issues must be reported immediately to the shipping and handling team for prompt resolution.
