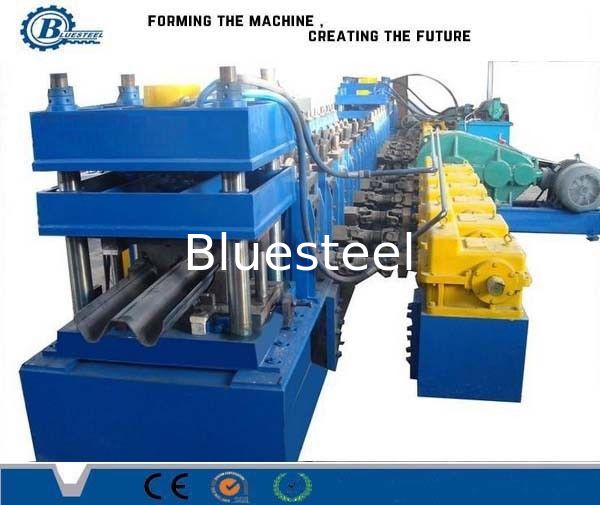

Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway

Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway
Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway
Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway

Large Image :  Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway

Product Details:
Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare partsin wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month

Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway

Description
Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System
High Light:

highway guardrail roll forming machine

,

custom Roll Forming Machine

Hot Sale Highway Guardrail Roll Forming Making Machine Made In China, Guardrail Making Machine

Specifications

Highway Guardrail Forming Machine
Expressway Guardrail Forming Machine
Crash Barrier Forming Machine
Guard Rail Machine
CE





Technical data of steel corrgated roll forming machine

Suitable material

 color steel sheet;0.8-1.2mm,

Working speed

about8-25m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 22.5 Kw(Depend on final design)

Hydraulic station power: 7.5Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)





Layout drawing of machine



Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway 0





Our  Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system:   big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



producing process:



Product:





We can also customize the products according to customer ' s requirements

Metal Beam Crash Barrier / Guardrail Roll Forming Machine For Expressway 1
