Product Details:
Place of Origin: China
Brand Name: Bluesteel
Model Number: BL-PU foam shutter door
Payment & Shipping Terms:
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 10set

Steel Aluminium Roller Shutter Door Machine PLC Control System 220V Voltage

Description
Application: Industrial Operation Mode: Automatic
Safety Device: Photoelectric Sensor Warranty: 1 Year
Reducer: Helical Gear Reducer Control System: PLC
Speed: 10-20m/min Size: Customized
High Light:

Customized Aluminium Rolling Shutter Forming Machine

,

Steel Roller Shutter Door Machine 220V

Product Description:

We offer 39mm and 45mm insulating shutters rolls forming machine for Windows. This professional equipment is designed with a capacity of forming rolls by using steel, aluminum and other materials.

The machine produces high quality window shutters, which are formed with precision and stability. It utilizes advanced PLC (Programmable Logic Control) technology with imported components, which can realize accurate and reliable control. Besides, its construction is durable with high precision, smooth operation and long service life.

In addition, its maximal forming width reaches 500mm and its speed can reach 40m/min (formed by the profile). Its adequacy can be adjusted from 18 - 25mm.

This equipment also has multiple functions, such as automatic punching, timing, motion control etc. It also comes with low noise and energy saving features.



Features:

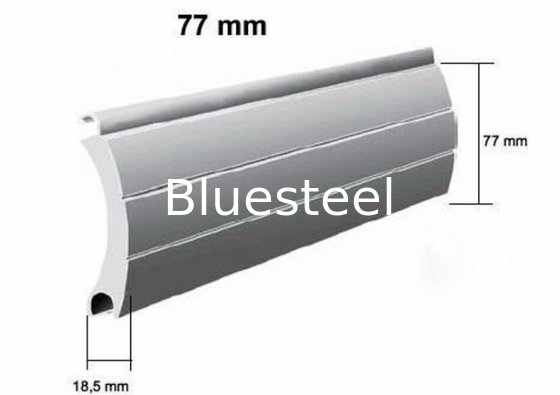

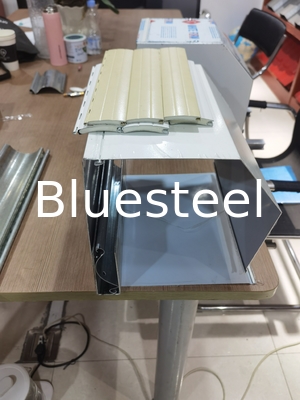

The 55mm 77mm 98mm PU Foam Shutters Door Roll Forming Machine is a compact solution for production of insulated door components. The machine comes with various sizes of roll diamond and spring and a standard 45 degree corner die. It can produce multi-layer thermal insulation insulation components efficiently.

This machine is suitable for the production of insulating door components with thickness ranges of 55mm, 77mm, and 98mm. It is capable of forming various shapes, such as curved or bow windows. The thickness of the produced component is adjustable and the grooves are adjustable too. The pre-cut insulation material is embedded into the machined profile to obtain a smooth finish.

The machine is capable of forming the necessary components for insulation doors, which are mainly made of extruded EPS, XPS, Rockwool, and PU foam. It can be used to form complex and intricate shapes for multiple components. It has a wide application and can be used to make components for aluminum alloy, steel, and wooden door projects.

The PU Foam Shutters Door Roll Forming Machine is a reliable and versatile solution for door insulation components production. It is safe and easy to use, and its operation is easy to master. It is also equipped with a wide range of additional optional items for customization. With its advanced technology and simple design, this machine is an ideal choice for door insulation component production.



Technical Parameters:

Main specification
1. Decoiler

It has manual un-coiling capacity which ≤3T.

2. Main datas of forming machine

It has about 36 stands and roller material GCr15 which made of model steel, HRC50-54. Axial diameter for it is Φ40mm. The main axial material is No 45 steel HRB260-280. It has gear box transmission and frequency conversion decelerating.

It also has PLC control to fix length control ±1mm. Besides, the components for it are Schneider. Furthermore, it has precision of rollerless than ±0.5mm. For motor, it is 380V, 50HZ, 11kw (or according to you're requirements) and the machine basement material is H beam.

3. Foaming machine: 1 set (China top brand)
4. Pneumatic flying punching machine 1 set

The material for cut is Cr12Mov and the quench is HRC58-62.

5. Automatic punching device 1 set
6. Finished products table: 1 set


Applications:

Roller shutter door is a type of door or window containing many horizontal strips. To open the door, it is raised; to close it, it is lowered. Motorized action is applied to larger doors. It provides protection from wind and rain. It is also used in front of a window as a preventative measure against vandalism and burglary attempts.

Roller shutter door has many uses, such as doors for vans, garages, kitchens, schools, prisons and warehouses. In certain places, governments recognize roller shutter door due to the increased security benefit. Additionally, areas that are consistently subject to bad weather conditions rely on roller shutters as insulation; it also guards against hail damage to the windows.



Customization:

Roller Shutter Door Machine

We provide Roller Shutter Door Machine of superior quality. The brand name is Bluesteel, model number is BL-PU foam shutter door. Our products are made in China and delivery time is 60days. Payment terms are T/T and supply ability is 10set.

The motor used is AC Motor, with a Helical Gear Reducer for smooth operation. The shutter is equipped with a Photoelectric Sensor for safety. It has an Automatic operation mode and power of 5.5KW.



Support and Services:



Roller Shutter Door Machine Technical Support and Service

We provide comprehensive technical support and services for our Roller Shutter Door Machine products.

Our experienced technical support team is committed to providing the highest level of service and support for our customers. We offer 24/7 phone and online support, as well as onsite support and maintenance. We also provide training, documentation, troubleshooting and repair services.

We strive to ensure that our customers have access to the latest information and technology to ensure that their Roller Shutter Door Machine products are performing optimally. Our goal is to provide our customers with the best possible experience.
