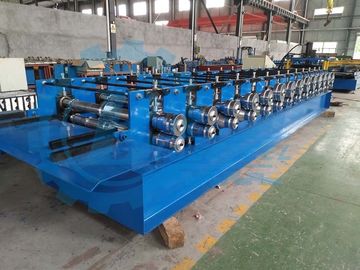

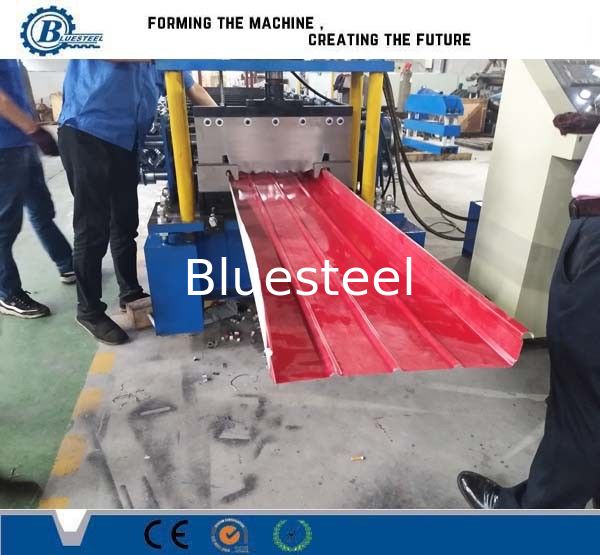

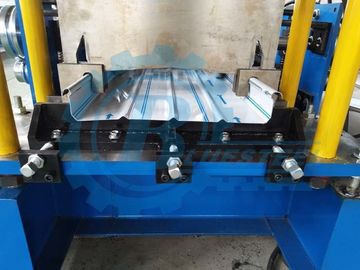

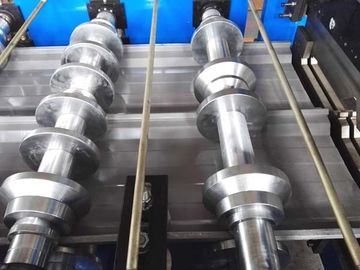

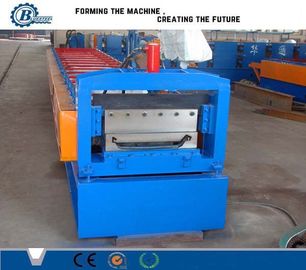

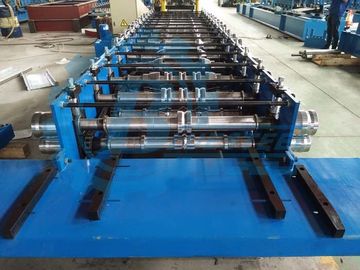

45# Steel Standing Seam Roll Forming Machine 20-22 Stations

I'm Online Chat Now

45# Steel Standing Seam Roll Forming Machine 20-22 Stations

45# Steel Standing Seam Roll Forming Machine 20-22 Stations
45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations 45# Steel Standing Seam Roll Forming Machine 20-22 Stations

Large Image :  45# Steel Standing Seam Roll Forming Machine 20-22 Stations

Product Details:
Place of Origin: China
Brand Name: Banlu
Model Number: BL-5

45# Steel Standing Seam Roll Forming Machine 20-22 Stations

Description
Power: 7.5KW Type: Standing Seam Roll Forming Machine
Roller Material: 45# Steel Voltage: 380V/50Hz/3Phase
Size: 7.5m*1.2m*1.5m Material: Steel
Weight: About8T Roller Stations: 20-22 Stations

Product Description:

The Standing Seam Roll Forming Machine is an efficient and comprehensive production equipment for standing seam roof panel production. It is equipped with 20-22 roller stations and cutting mode of hydraulic cutting, ensuring stable production speed up to 15m/min. The roller hardness of HRC58-62 is suitable for the production with 45# steel materials.

This state-of-the-art standing seam machine is designed to provide the highest level of precision and accuracy, delivering outstanding performance and superior results. It is built with robust and long-lasting components that require minimal maintenance and upkeep. With its advanced features and cutting-edge technology, it ensures consistent product quality and smooth operation.

This standing seam machine is easy to operate and can be used for both large and small production runs. It is ideal for producing a variety of standing seam roof panels with a wide range of materials. It is the perfect choice for any business that wants to make the most of their production and maximize their profitability.


Features:

  • Product Name: Standing Seam Roll Forming Machine
  • Weight: About 8T
  • Voltage: 380V/50Hz/3Phase
  • Roller Material: 45# Steel
  • Forming Speed: Max.15m/min
  • Size: 7.5m*1.2m*1.5m
  • Features: Standing Seam Forming Machine, Standing Seam Machine, Standing Seam Forming Machine

Technical Parameters:

Parameter Value
Cutting Tolerance ±2mm
Width Max.1250mm
Control System PLC Control System
Roller Hardness HRC58-62
Power 7.5KW
Material Steel
Voltage 380V/50Hz/3Phase
Type Standing Seam Roll Forming Machine
Forming Speed Max.15m/min
Size 7.5m*1.2m*1.5m

Applications:

The Banlu BL-5 Standing Seam Roll Forming Machine is a powerful and reliable roll forming machine designed to handle a variety of applications. This machine is ideal for manufacturing standing seam roofs and is perfect for large scale construction projects. It is equipped with 20-22 roller stations that can handle steel materials with thicknesses of 0.3-1.2mm and maximum widths of 1250mm. The standing seam roll forming machine is made of durable steel and is designed for high efficiency and long lasting performance. It is equipped with advanced technology and features that make it the perfect choice for creating standing seams for roofs and other structures. The Banlu BL-5 Standing Seam Roll Forming Machine is a reliable and powerful machine that is perfect for large scale construction projects and can help you create strong and reliable standing seam roofs that are sure to last.


Customization:

Standing Seam Roll Forming Machine
  • Brand Name: Banlu
  • Model Number: BL-5
  • Place of Origin: China
  • Cutting Mode: Hydraulic Cutting
  • Voltage: 380V/50Hz/3Phase
  • Width: Max.1250mm
  • Forming Speed: Max.15m/min
  • Power: 7.5KW

Banlu's standing seam roll forming machine is the ideal choice for creating metal roofing sheets and panels. This machine features hydraulic cutting, voltage of 380V/50Hz/3Phase, width of Max.1250mm, forming speed of Max.15m/min, and power of 7.5KW. With this standing seam machine, you can produce standing seam metal roofing sheets and panels of any length with precision and efficiency.


Support and Services:

Standing Seam Roll Forming Machine Technical Support and Services

We offer comprehensive technical support and services for our Standing Seam Roll Forming Machines, to ensure that they are continuously running at their optimum performance.

We can provide on-site technical support for any issues that may arise, and our experienced technicians are available to provide troubleshooting advice and help with diagnosis and repair. We also offer maintenance and inspection services, to check and replace worn parts and ensure the machine is operating safely and efficiently.

We can also provide remote technical support, allowing our technicians to connect to the machine remotely and diagnose issues quickly and easily. We can also provide detailed machine manuals and training courses to help operators understand and use the machine effectively.

For more information on our technical support and services, please contact us today.
