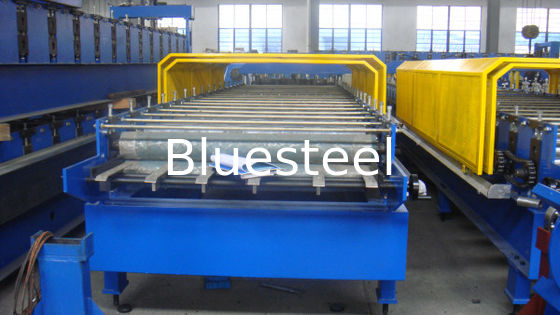

Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton

Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton
Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton

Large Image :  Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton

Product Details:
Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare partsin wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month

Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton

Description
Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System
High Light:

Mitsubishi PLC Sheet Roll Forming Machine

,

0.7mm Thickness Sheet Roll Forming Machine

,

5T Metal Roofing Roll Forming Machine

5 Ton Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal

Technical parameter



Suitable material color steel sheet;0.3-07mm,
Working speed about10-25m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 4Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)



Specifications

metal roof sheet roof tile roll forming machine


1.  good quality
2.  no noise,no shake
3.  hydraulic system



Usage Of Roof Panel :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.



Features of Large span roofing sheet roll forming machine:
Support many kinds of material like galvanized steel, colored steel, etc. And the material thickness from 0.8-1.5mm could be done.
Support to make various colors, shapes design large span roofing sheets in high speed.
Save energy and workforce, as nearly all the work could be done by machine automatically.
We use brake system on decoiler for in case of stopping suddenly, de-coiler can be stopped easily.
We take big diameter rollers, which can make the appearance of finished arch more beautiful.
The rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.





Layout drawing of machine



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 0





Our  Roll Forming Machine’s advantages



1.  Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system:   big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



producing process:



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 1



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 2



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 3



Product:



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 4



We can also customize the products according to customer ' s requirements



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 5

Application:







Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 6Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 7



Showroom



Manual Decoiler Metal Roofing Roll Forming Machine Glazed Trapezoidal 5 Ton 8
