Product Details:
|
| Thickness Range: | 0.3-0.7mm | Material Stress: | 235MPa 345MPa And 550MPa. |
|---|---|---|---|
| Roller Material: | No.45steel | System: | PLC Control Automatic System |
| High Light: | sheet metal shearing machine,cut to length line machine |
||
Technical data of steel corrgated roll forming machine
|
Suitable material |
color steel sheet;0.8-1.2mm, |
|
Working speed |
about8-25m/min |
|
stress |
235MPa,345MPa,550MPa. |
|
Power |
Main motor power: 22.5 Kw(Depend on final design) |
|
Hydraulic station power: 7.5Kw(Depend on final design) |
|
|
Material of forming rollers |
No.45 steel, plated with chrome on surface. |
|
Material of cutter,pressing die |
Cr12 mould steel with quench treatment, HRC58-60 |
|
Material of shaft |
High quality 45# steel, Roller grinder milling. |
|
Shaft diameter |
72mm |
|
Controlling system |
Mitsubishi PLC & converter |
|
Total weight of machine |
About 9500KGS |
|
Machine’s size |
about 18m×1.8m× 1.5m (Depend on final design) |
Our Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

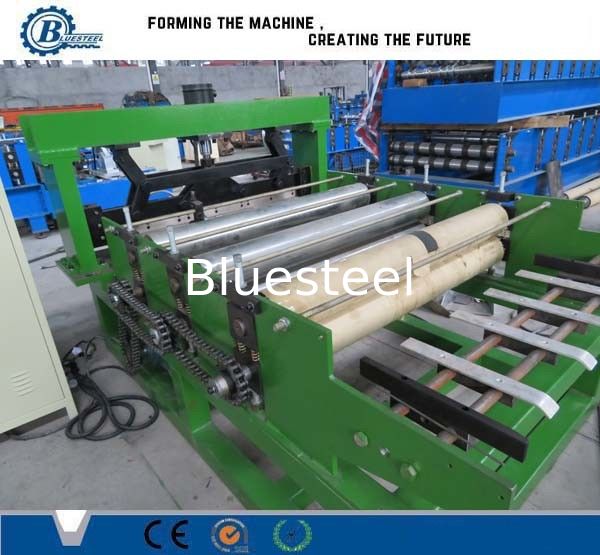

Machine Picture:
We can also customize the products according to customer ' s requirements
