Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin

I'm Online Chat Now

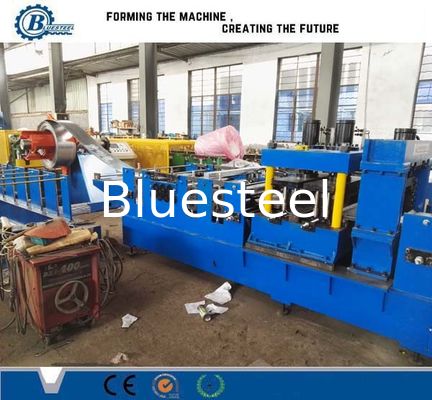

Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin

China Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin supplier
Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin supplier Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin supplier

Large Image :  Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin

Product Details:

Place of Origin: China
Brand Name: Bluesteel
Certification: CE
Model Number: z purlin metal framing machine

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Main machine is covered with air bubble,Small parts are in wooden box.All are fixed to container by steel rope.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Color: As Your Requirments Roller Material: Cr 12
Cutter Material: Cr12 Cutter: Hydraulic Fixed Cutter Or Nonstop Cutter
Controller: Mitsubishi Serve: Engineers Available To Serve Oversea For All Life Long
Decoiler: Hydraulic Expand Type Material Thickness: 1.5-3mm

Automatic C Z Shape Purlin Interchange Roll Forming Machine , Changable Size Purlin Forming Machine



Effective width: 80 -300mm
Raw Material width: 200-600mm
Product thickness: 1.5-3mm
Processing speed: 8-12m/min
Work Pressure: 235/345mpa
Voltage: 380v/50hz/3phase
Dimension: 10000*1200*1500
Weight: 3.5-7.2tons
C purlin height: 80-300mm
Z purlin height: 100-300mm
Control system: PLC
Warranty: 14 months



Machine feature:

We can make several dimensions in one machine.You can choose manul change size purlin machine.

Also ,you can choose auto change size machine.Just push a button ,it will change within seconds.

 We also make c z purlion changeable machine.



Work folw:

Coil--Decoiler--guiding device-- roll forming --cutting-- run out table



Machine components:



Decoiler 1set (passive type and hydrualic expand one for choice)
Guiding 1set
Rollformer 1set(manul change and auto change for choice)
PLC 1set
Hydraulic station 1set
Cutter 1set
Run out table 1set or auto stacker
And so on

Machine overview:

We choose best machine parts to make sure mahine is durable and stable.Using big hydraulic station to make sure power supply.



C Z purlin:

Automatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin

Metal framing Structure  for roof and building system:

Automatic C Z Shape Purlin Interchange Roll Forming Machine For PurlinAutomatic C Z Shape Purlin Interchange Roll Forming Machine For Purlin
