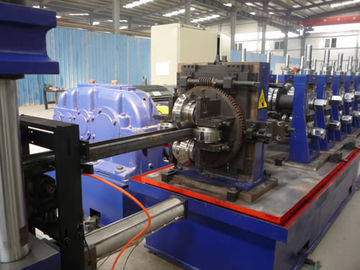

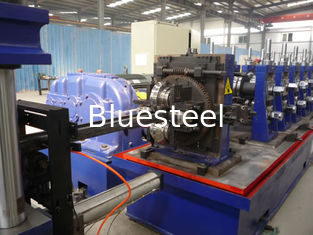

    Interchangeable c And z Purlins Roll Forming Machine / Sheet Metal Shaping Machines

    Product Details:

    Place of Origin: China
    Brand Name: bluesteel
    Certification: ce
    Model Number: bl

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: spare partsin wooden box,other plastic film cover
    Delivery Time: 45days
    Payment Terms: T/T or L/C
    Supply Ability: 50sets /month
    Get Best Price Contact Now

    Detail Information

    Thickness Range: 1.5-3.0mm Material Stress: 235MPa 345MPa And 550MPa.
    Roller Material: GCr 15 Or Cr 12 System: PLC Control Automatic System
    High Light:

    c z purlin roll forming machine

    ,

    cold roll forming machine

    Product Description

    Interchangeable c And z Purlins Roll Forming Machine / Sheet Metal Shaping Machines

    interchangeable c and z  Purlin Roll Forming Machine 80 - 350mm 10 -25m / min , Metal Shaping Machine



    Technical data of Heat - treated Purlin Roll Forming Machine 80 - 350mm 10 -12m / min , Metal Shaping Machine

    Suitable material

     color steel sheet 1.5-3.0mm,

    Working speed

    about10-25m/min

    stress

    235MPa,345MPa,550MPa.

    Power

    Main motor power:18.5 Kw(Depend on final design)

    Hydraulic station power: 7.5Kw(Depend on final design)

    Material of forming rollers

    No.45 steel, plated with chrome on surface.

    Material of cutter,pressing die

    Cr12 mould steel with quench treatment, HRC58-60

    Material of shaft

    High quality 45# steel, Roller grinder milling.

    Shaft diameter

    72mm

    Controlling system

    Mitsubishi PLC & converter

    Total weight of machine

    About 10000KGS

    Machine’s size

    about 18m×1.8m× 1.5m (Depend on final design)





    Layout drawing of machine

    Interchangeable c And z  Purlins Roll Forming Machine / Sheet Metal Shaping Machines 0







    Our  Roll Forming Machine’s advantages



    1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



    2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



    3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



    4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



    5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



    6. powerful driving system:   big inch train,or gear box driving system.



    6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



    producing process:

    Interchangeable c And z  Purlins Roll Forming Machine / Sheet Metal Shaping Machines 1









    We can also customize the products according to customer ' s requirements





    Interchangeable c And z  Purlins Roll Forming Machine / Sheet Metal Shaping Machines 2
