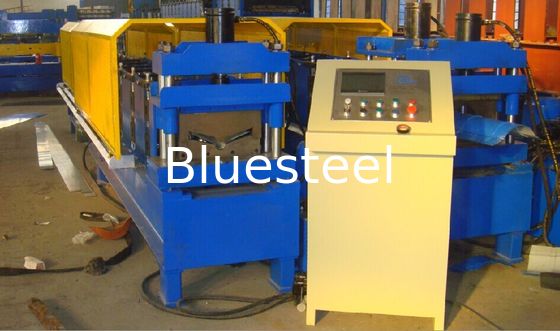

    Galvanized Step Tile Ridge Cap Roll Forming Machine With Painted Steel

    Product Details:

    Place of Origin: China
    Brand Name: bluesteel
    Certification: ce
    Model Number: bl

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: spare partsin wooden box,other plastic film cover
    Delivery Time: 45days
    Payment Terms: T/T or L/C
    Supply Ability: 50sets /month
    Get Best Price Contact Now

    Detail Information

    Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
    Roller Material: No.45steel System: PLC Control Automatic System
    Weight: About 3000~5000Kgs
    High Light:

    sheet metal roll forming machines

    ,

    roofing sheet making machine

    Product Description

    Galvanized Step Tile Ridge Cap Roll Forming Machine With Painted Steel

    Steel Galvanized Ridge Cap Roll Forming Machine Hydraulic Control, Roof Panel Ridge Cap Making Machine



    Specifications



    color steel roof ridge cap roll forming machine
    wholesale price&considerate service
    simple installation&durable in use





    Technical data of metal roof tile roll forming machine

    Suitable material

     color steel sheet;0.3-0.7mm,

    Working speed

    about1.5-5m/min

    stress

    235MPa,345MPa,550MPa.

    Power

    Main motor power: 5.5 Kw(Depend on final design)

    Hydraulic station power: 4Kw(Depend on final design)

    Material of forming rollers

    No.45 steel, plated with chrome on surface.

    Material of cutter,pressing die

    Cr12 mould steel with quench treatment, HRC58-60

    Material of shaft

    High quality 45# steel, Roller grinder milling.

    Shaft diameter

    72mm

    Controlling system

    Mitsubishi PLC & converter

    Total weight of machine

    About 9500KGS

    Machine’s size

    about 18m×1.8m× 1.5m (Depend on final design)





    Layout drawing of machine



    Galvanized Step Tile Ridge Cap Roll Forming Machine With Painted Steel 0





    Our  Roll Forming Machine’s advantages



    1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



    2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



    3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



    4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



    5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



    6. powerful driving system:   big inch train,or gear box driving system.



    6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.









    We can also customize the products according to customer ' s requirements



    Galvanized Step Tile Ridge Cap Roll Forming Machine With Painted Steel 1

    Galvanized Step Tile Ridge Cap Roll Forming Machine With Painted Steel 2

    Galvanized Step Tile Ridge Cap Roll Forming Machine With Painted Steel 3
