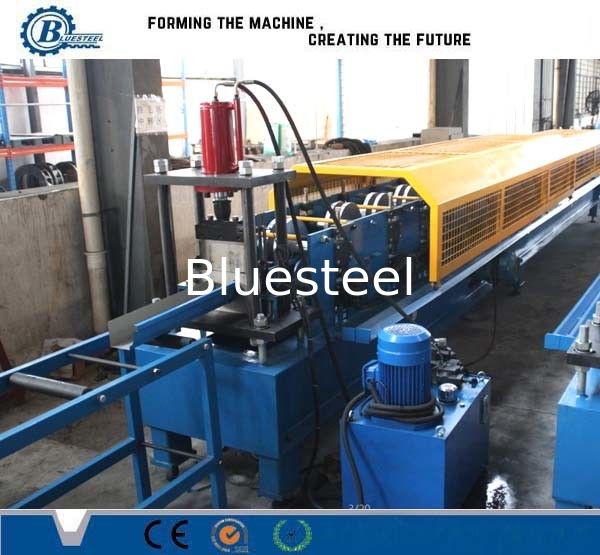

• Half Round Gutter Roll Fomrer Machine With Automatic Length Measuring
Half Round Gutter Roll Fomrer Machine With Automatic Length Measuring

Half Round Gutter Roll Fomrer Machine With Automatic Length Measuring

Product Details:

Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare parts in wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month
Get Best Price Contact Now

Detail Information

Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System
Use: Roofing Machine Structure: Steel Plate Structure
High Light:

downspout Roll Forming Machine

,

down pipe Roll Forming Machine

Product Description

Half Round Gutter Roll Fomrer Machine With Automatic Length Measuring

Durable Automatic PLC Control Metal Steel Rainwater Downspout Down Pipe Roll Forming Machine



steel strip supporting frame

Feeding platform

Automatic shearing system

Hydraulic system Steel strip unfolding system

Computer control system (imported computer)

High-precision automatic counter

Receiving table

Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel shee





Technical data of downpipe roll forming machine

Suitable material

 color steel sheet;0.7-1.0mm,1.5mm, 2mm

Working speed

about8-25m/min

stress

235MPa,345MPa,550MPa.

Power

Main motor power: 12 Kw(Depend on final design)

Hydraulic station power: 3Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)



Layout drawing of machine



Half Round Gutter Roll Fomrer Machine With Automatic Length Measuring 0





Our  Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system:   big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



Application:    downspout, rainspout, rainwater downpipe, water pipe



We can customize the products according to customer ' s requirements





Half Round Gutter Roll Fomrer Machine With Automatic Length Measuring 1





Usage Of Roof Panel :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.



Feature Of Our Machines:

1.Our machines can uses galvanized steel sheet, colored armor plate or

aluminum plate as the material plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free

3. We can make and design will kinds of roll forming machine according to customer's request.
