Product Details:
Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000-50000
Packaging Details: spare partsin wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month

High Speed

Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System

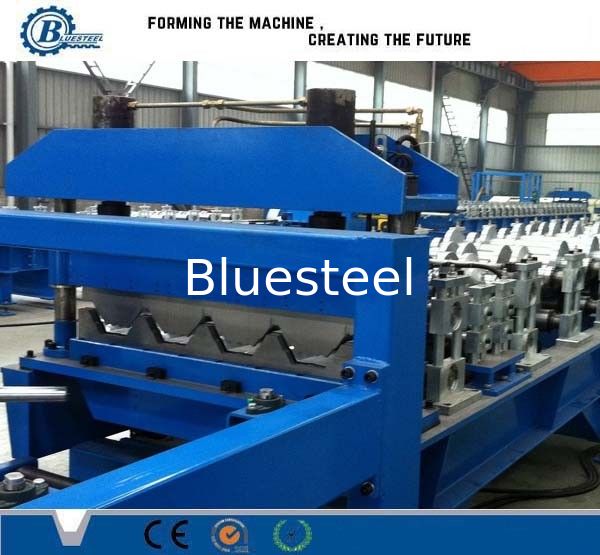

High Efficiency Colored Steel Plate Metal Roof Tile Roof Roll Forming Machine For House​




The roof tile panel is formed by ibr forming machine from high quality coated sheet, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.


The line is for continuously roll forming and pressing step tile on series profile. The length

is unlimited and step depth can be as customers’ requirement.


Line Specification


Suitable Material:               Thickness: 0.4-0.6mm PPGI/AL, width as the design


Step Length:                      100-400mm


Decoiler:                             5T/8T/10 Decoiler


Forming Station:                10-30 stations up to the profile


Forming Speed:                  Max 30 m/min


Max Working Speed:           5.5M/min


Panel Run Out:                   12m Auto Stacker


Total Power:                       About 30 KW up to final design


Total Installation Size:        (40-60) X 5 m up to final design



Our  Roll Forming Machine’s advantages


1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong


2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.


3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.


4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.


5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.


6. powerful driving system:   big inch train,or gear box driving system.


6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.


producing process:




High Speed 0


High Speed 1




High Speed 2



We can also customize the products according to customer ' s requirements







High Speed 3High Speed 4


Packaging Detail of steel sheet roll forming machine :

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
