Automatic Roof Panel Roll Forming Machine

Automatic Roof Panel Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: bluesteel
Certification: ce
Model Number: bl

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: spare partsin wooden box,other plastic film cover
Delivery Time: 45days
Payment Terms: T/T or L/C
Supply Ability: 50sets /month
Get Best Price Contact Now

Detail Information

Thickness Range: 0.3-0.7mm Material Stress: 235MPa 345MPa And 550MPa.
Roller Material: No.45steel System: PLC Control Automatic System
High Light:

metal roll forming machine


steel roll forming machine


235MPa Roof Panel Roll Forming Machine

Product Description

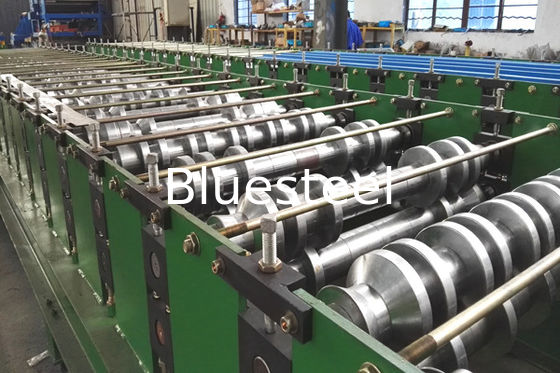

Automatic Roof Panel Roll Forming Machine

Hydraulic Automatic Trapezoidal Roof Panel Sheet Roll Forming Machine For Roofing

Feature Of Our Machines:

1. Our machines can uses galvanized steel sheet, colored armor plate or

aluminum plate as the material plate.

2.  Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,


3.  We can make and design will kinds of roll forming machine according to customer's request.




Line Specification


Suitable Material:               Thickness: 0.4-0.6mm PPGI/AL, width as the design


Step Length:                      100-400mm


Decoiler:                             5T/8T/10 Decoiler


Forming Station:                10-30 stations up to the profile


Forming Speed:                  Max 30 m/min


Max Working Speed:           5.5M/min


Panel Run Out:                   12m Auto Stacker


Total Power:                       About 30 KW up to final design


Total Installation Size:        (40-60) X 5 m up to final design



Our  Roll Forming Machine’s advantages


1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong


2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.


3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.


4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.


5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.


6. powerful driving system:   big inch train,or gear box driving system.


6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.


producing process:


Automatic Roof Panel Roll Forming Machine 0










Automatic Roof Panel Roll Forming Machine 1



We can also customize the products according to customer ' s requirements







Automatic Roof Panel Roll Forming Machine 2Automatic Roof Panel Roll Forming Machine 3


Packaging Detail of steel sheet roll forming machine :

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
